One coil fits all valve sizes
-
Low wattage
-
Encapsulated, watertight design
-
Operates on standard voltages
-
Combination 50/60Hz coil
-
Can be used with European/Danish coils using
-
Coil Adapter Kit 70-1104
-
Easily installed, no tools required
-
Long life wireless pilot light optional
hansen電磁閥線圈70-0585/漢森電磁閥優惠供應
、

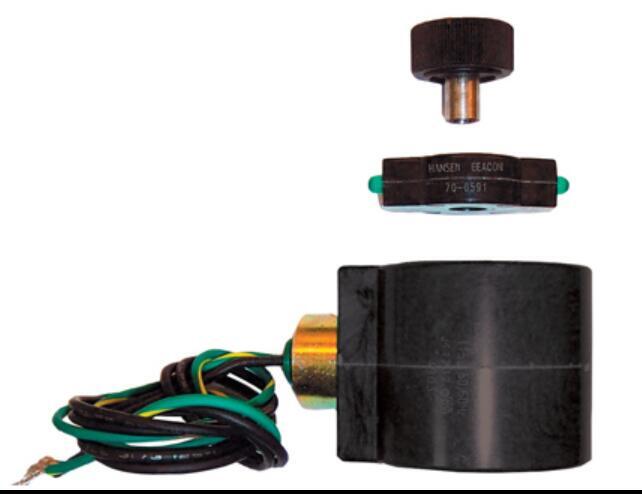

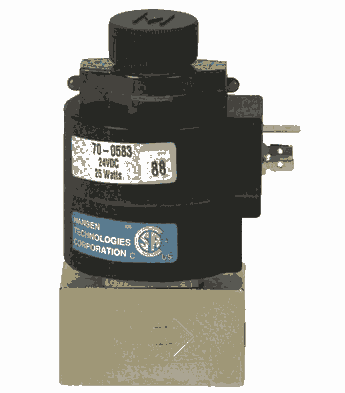

Coils and Pilot Lights
All Hansen solenoid valves utilize a one-size encapsulated, watertight coil. These coils are strong and efficient, requiring only 16 watts of power. All common voltages and frequencies are available. Coils are designed to operate from 85% to 110% of rated voltage. Pilot light assemblies are also available. The pilot light assemblies require no additional wiring.
The standard coil connection is a ?” female straight pipe fitting (NPSM) for conduit, with two 18” long, insulated 18 AWG wire leads plus ground wire. Coils with a DIN plug or a Quick Disconnect plug are available where codes permit. All coils meet NEMA 3R (IP32) (rainproof) and NEMA 4 (splashproof) requirements. This sealed construction can withstand direct contact with splashing or hose-directed water, wind blown dust or rain, and remain undamaged by the bbbbation of ice.
Features:
電磁線圈和指示燈
電磁線圈
模鑄、防水的電磁線圈配有
450mm的長絞線引出端。 標準線圈的電壓為115V，
208/240V，24V;
頻率為50/60Hz
為了保證接地線連接，可選用DIN插頭 該線圈包括DIN插座及密封圈。 電壓為115V，208/240V，24V; 頻率為50/60HZ（防護等級IP65）
指示燈
帶有兩個LED燈的獨特設計。不需要另加接線。這兩個LED 燈的能量來自電磁線圈的磁場。當線圈帶電時指示燈亮。這 個“線圈指示燈”安裝在涵森交流線圈的頂部�？蛇x的顏色有 紅、綠、黃。
