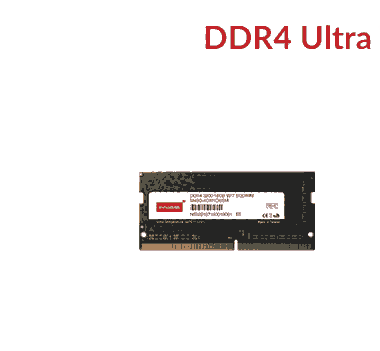

DDR4 Ultra Temperature SODIMM

產品特色

• Small Outline Dual In-line Memory Module
• Fully Tested and Optimized for Stability and Performance
• Uses Original IC to Meet Strict Industrial Standards
• Anti-Sulfuration Protection Against Harsh Environments
• JEDEC Standard 1.2V (1.26V~1.14V)
• Operating Environment: -40°C ~ 125°C
• 45μ” Gold Finger
• RoHS Compliance
• CE/FCC Certification
• Drop Test ISTA-1A (International Safe Transit Association)
• Gold Finger Insert & Extract 100 times
• Thermal Shock (MIL-STD-810G)

Overview:

DDR4 Ultra-temperature SODIMM offers a compact design and the industry's fastest memory speed with 3200MT/s - the perfect fit for any in-vehicle, surveillance, automation and embedded application. The modules comply with all relevant JEDEC standards, can operate in temperatures from -40oC to 125oC, and are available in 16GB and 32GB capacities. 2133MT/s, 2400MT/s 2666MT/s and 2933MT/s modules are also available.

規格：

Interface	DDR4
Data Rate	2133 MT/s, 2400 MT/s, 2666 MT/s, 2933 MT/s, 3200 MT/s
Capacity	16GB, 32GB
Function	Non-ECC Unbuffered Memory
Pin Number	260pin
Width	64Bits
Voltage	1.2V
PCB Height	1.18 Inches
Operating Temperature	-40°C to 125°C
45μ” Gold Finger	Y
Anti-Sulfuration	Y

產品料號：

Density	Component Composition	Part Number	Rank	Voltage	Description
16GB	1GX8	M4S0-AGM1OEEM	2Rx8	1.2V	DDR4 3200 Ultra Temperature SODIMM
32GB	2GX8	M4S0-BGM2OEEM	2Rx8	1.2V	DDR4 3200 Ultra Temperature SODIMM
